Cleanroom HVAC Design: How to Calculate Heat Load and CFM Requirements

Cleanroom HVAC design requires far greater precision than standard commercial air conditioning, as it must balance temperature control, humidity stability, particulate cleanliness, and differential pressure protection simultaneously. Many facilities suffer from hot spots, humidity drift, and excessive energy costs not due to insufficient equipment, but from inaccurate cleanroom heat load calculation and oversimplified cleanroom CFM formula estimates.

This guide covers the core principles of HVAC design for cleanrooms, including step-by-step load calculation methods, airflow sizing logic, and the critical distinction of sensible heat vs latent heat cleanroom performance. Backed by Deiiang’s 15+ years of field engineering experience, it provides practical formulas, industry benchmarks, and real-world insights to help you design systems that deliver reliable compliance and efficient operation.

Why Cleanroom HVAC Design Is About More Than Temperature

Cleanroom HVAC design is far more complex than standard commercial air conditioning, as it must balance temperature control, humidity regulation, particulate filtration, and differential pressure maintenance simultaneously. Many facility owners encounter performance issues not because their system lacks cooling capacity, but because inaccurate cleanroom heat load calculation or an improperly applied cleanroom CFM formula leads to under- or over-sized airflow.

A well-executed HVAC design for cleanrooms accounts for all heat and moisture sources, aligns airflow with cleanliness classification, and adapts to local climate conditions. Proper evaluation of sensible heat vs latent heat cleanroom loads is especially critical for stable operation in humid or high-heat-density environments. Common failure points include underestimated outdoor air loads, unaccounted equipment heat density, and airflow rates selected by area rules of thumb rather than engineered calculation.

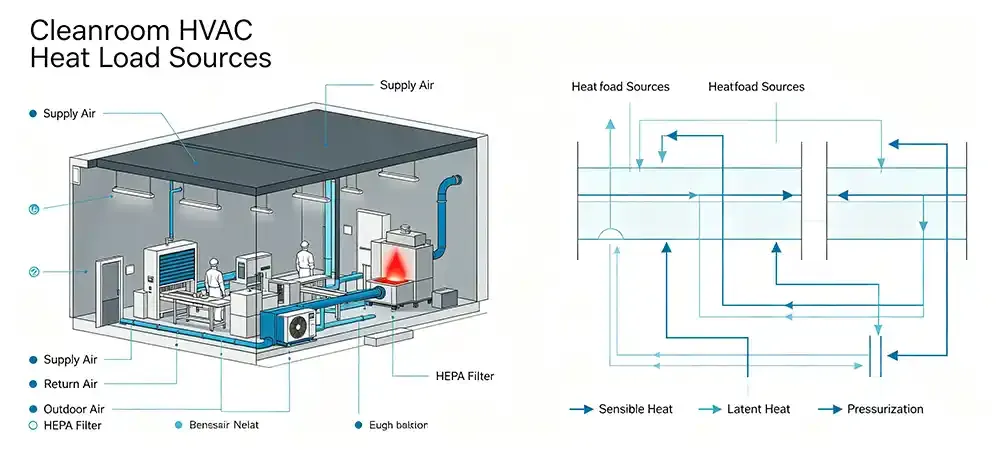

Primary heat load sources and system logic for cleanroom HVAC

Key Questions About Cleanroom HVAC Design

How to calculate cleanroom heat load?

Accurate cleanroom heat load calculation requires quantifying all sensible and latent heat inputs to the space. Primary load categories include equipment sensible heat, personnel sensible and latent heat, lighting heat, outdoor air load, envelope heat transfer, and process-specific heat or moisture generation. Each source must be calculated individually and summed to determine total cooling and dehumidification requirements.

What is the cleanroom CFM formula?

There is no single cleanroom CFM formula that applies universally. Required supply airflow is determined by three overlapping factors: thermal load removal, air change rate (ACH) for cleanliness control, and minimum outdoor air requirements for ventilation and pressurization. Final CFM values must satisfy all three constraints, with cleanliness requirements typically governing in higher-grade cleanrooms.

Sensible heat vs latent heat cleanroom

Understanding sensible heat vs latent heat cleanroom performance is essential for proper system sizing. Sensible heat affects air temperature without changing moisture content, while latent heat involves phase changes of water and directly impacts relative humidity. Many designs underestimate latent loads, leading to humidity drift, condensation risk, and compromised process yield in pharmaceutical and electronic manufacturing spaces.

Cleanroom Heat Load Calculation: Methods and Formulas

A complete cleanroom heat load calculation combines sensible and latent components to define total cooling capacity. Sensible heat loads come from equipment operation, lighting, heat transfer through walls and ceilings, and the dry heat emitted by occupants. Latent loads originate primarily from personnel respiration and perspiration, process evaporation, and moisture carried in by makeup air.

Core formulas used in HVAC design for cleanrooms include:

• Sensible heat (Qs): Qs = 1.08 × CFM × ΔT (Btu/h), where ΔT = supply-to-room temperature difference
• Latent heat (Ql): Ql = 0.68 × CFM × ΔW (Btu/h), where ΔW = humidity ratio difference (grains/lb)
• Total cooling load: Qt = Qs + Ql
• Safety factor: Final load multiplied by 1.15–1.25 to cover peak conditions and filter aging

Step-by-Step Calculation Walkthrough (Pharmaceutical Cleanroom)

Below is a full cleanroom heat load calculation for a typical ISO 7 pharmaceutical processing room to demonstrate real-world application:

• Room dimensions: 100 m² (1,076 sq ft) floor area, 3 m (9.84 ft) ceiling height → 300 m³ (10,594 cu ft) volume
• Equipment sensible load: 3 processing machines × 4 kW each = 12 kW = 40,956 Btu/h
• Personnel load (5 operators, moderate activity): 250 Btu/h sensible + 200 Btu/h latent per person → 1,250 Btu/h sensible, 1,000 Btu/h latent
• Lighting load (15 W/m²): 100 m² × 15 W = 1.5 kW = 5,120 Btu/h sensible
• Envelope conduction load: ~3,200 Btu/h sensible for standard wall/roof construction
• Outdoor air load (20% of supply air): ~8,400 Btu/h sensible, 12,800 Btu/h latent at summer design conditions
• Subtotal: 58,926 Btu/h sensible, 13,800 Btu/h latent
• With 1.2 safety factor: Total cooling capacity = ~87,270 Btu/h ≈ 7.3 tons of refrigeration

Cleanroom CFM Formula: Determining Supply Airflow

While thermal load is a key input, the cleanroom CFM formula for most facilities is driven primarily by air change rates tied to ISO classification. Designers follow a three-tier validation process to confirm airflow requirements.

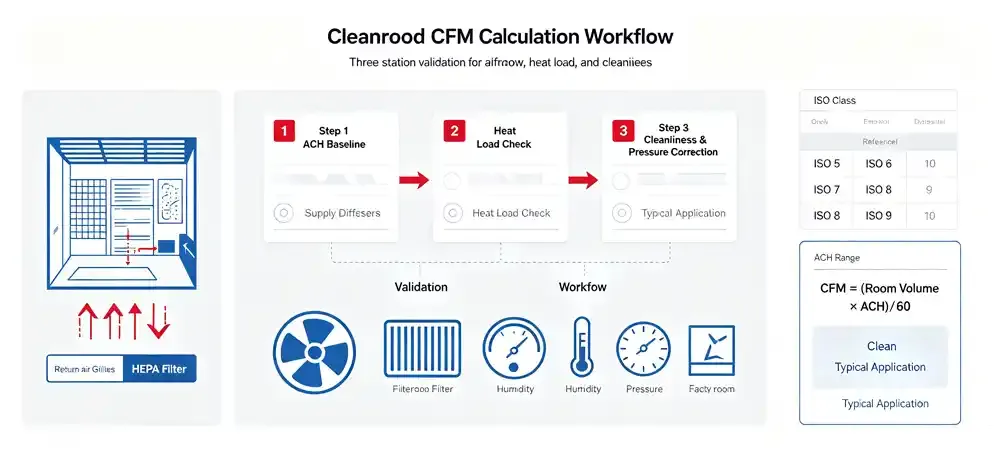

Step 1 – ACH baseline calculation:

CFM = (Room Volume × Required ACH) / 60

Step 2 – Thermal load cross-check: Verify that calculated airflow can absorb all generated sensible and latent heat while maintaining setpoints. If thermal load demands more airflow than the ACH method, the higher value governs.

Step 3 – Cleanliness and pressure correction: Adjust for filter pressure drop, room pressurization, and airflow distribution losses. Deiiang™ lead engineer Jason.peng notes that 10–15% additional margin is standard to account for HEPA Filtration loading over time.

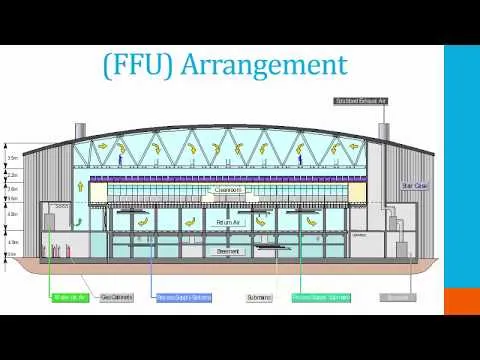

Core Principles of HVAC Design for Cleanrooms

Effective HVAC design for cleanrooms extends well beyond load calculation and airflow sizing. System performance depends heavily on how air is distributed, recovered, and conditioned throughout the space.

• Airflow pattern: Unidirectional, non-unidirectional, or mixed-flow arrangements selected based on cleanliness class and process layout
• Pressure gradient: 5–20 Pa positive pressure relative to adjacent less-clean spaces to prevent infiltration
• Control logic: Separate cooling and dehumidification stages for precise temperature and humidity management
• Filter matching: HEPA/ULPA efficiency and face velocity aligned with airflow requirements and cleanliness targets
• Return air design: Grille placement to avoid heat stratification and short-circuiting of supply air

Many operational problems stem from poor airflow distribution rather than insufficient total CFM. Localized hot spots, particle accumulation, and humidity fluctuations often resolve with better diffuser placement and return air positioning, not increased fan speed.

Sensible Heat vs Latent Heat in Cleanroom Environments

The distinction between sensible heat vs latent heat cleanroom loads directly impacts system capability and process stability. Sensible heat removal determines how well the system maintains temperature setpoints, while latent heat removal defines humidity control performance.

In pharmaceutical manufacturing, electronics assembly, and life science laboratories, latent load control is often more challenging and more critical than temperature control. Even small humidity excursions can cause product corrosion, powder agglomeration, or microbial growth.

Local Climate & Industry Data for Accurate Sizing

Generic cleanroom heat load calculation formulas produce unreliable results without localization. Accurate HVAC design for cleanrooms integrates regional climate data, industry-specific process profiles, and applicable standards.

Climate factors such as summer design dry-bulb temperature, wet-bulb temperature, and annual humidity levels directly impact outdoor air load sizing. In high-humidity regions, latent loads from makeup air can increase total cooling requirements by 30% or more compared to arid climates.

Industry-specific load patterns also vary widely: semiconductor fabs have extremely high equipment sensible heat density; pharmaceutical facilities carry higher latent loads from personnel and wet processes; food packaging cleanrooms require moisture-resistant components for frequent washdowns. Relevant standards include ISO 14644, ASHRAE 62.1, ASHRAE 170, and EU GMP Annex 1.

Deiiang™ Cleanroom HVAC Product Performance

Deiiang™ modular cleanroom HVAC systems are engineered to address the full spectrum of load and airflow requirements for ISO 5 to ISO 9 cleanrooms. Designed by lead product engineer Jason.peng, these units integrate cooling, dehumidification, filtration, and supply fan functions in a compact, field-configurable package.

• Airflow range: 200 to 12,000 CFM per unit, with modular cascade for larger facilities
• Temperature accuracy: ±0.3°C to ±1.0°C; humidity accuracy: ±2% RH to ±5% RH
• Filtration: MERV 8 pre-filter + H14 HEPA final filter, 99.995% efficiency at 0.3 μm
• EC variable-speed fans reduce energy use by 25–35% vs. constant-volume AC systems

Field data from Deiiang™ installations shows that systems sized using proper cleanroom heat load calculation and zoned airflow control maintain setpoint stability 40% better than single-zone constant-volume designs.

Case Study: High-Density Electronic Cleanroom

A semiconductor SMT assembly facility located in a high-humidity coastal region required an ISO 7 cleanroom for high-density production, targeting 22°C ±1°C and 45% ±5% RH year-round. The 2,200 sq ft space housed high-heat reflow ovens concentrated in one production zone, creating uneven thermal distribution and persistent summer humidity control challenges under the original baseline design.

The Deiiang™ team applied a targeted cleanroom CFM formula and zoned airflow strategy: three independent thermal zones, low-level return grilles near heat sources, supplementary dehumidification for peak humidity, and variable-speed fan control matched to real-time load.

After commissioning, the facility maintained temperature within ±0.6°C and humidity within ±3% RH across all zones, while reducing annual HVAC energy consumption by 19% — delivering an estimated $15,000 USD in annual electricity cost savings for the client.

Common Misconceptions in Cleanroom HVAC Design

Quick Glossary of Key Terms

• ACH (air changes per hour): Measure of how many times total room air volume is replaced per hour; a primary cleanroom airflow sizing metric.
• Sensible Heat: Thermal energy that changes air temperature without altering moisture content.
• Latent Heat: Thermal energy associated with water phase changes, affecting humidity without changing dry-bulb temperature.
• CFM (Cubic Feet per Minute): Standard volumetric airflow unit for cleanroom HVAC system specification.
• HEPA Filtration: High-efficiency particulate air filtration with minimum 99.97% removal of 0.3 μm particles, core to cleanroom air quality control.

References

• ISO 14644-1:2015 — Cleanrooms and associated controlled environments
• ASHRAE 62.1 — Ventilation for Acceptable Indoor Air Quality
• ASHRAE 170 — Ventilation of Health Care Facilities
• EU GMP Annex 1 — Manufacture of Sterile Medicinal Products
