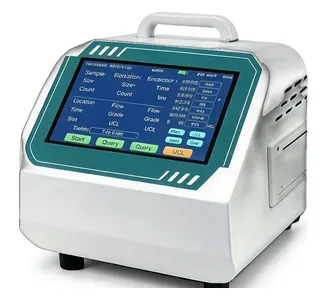

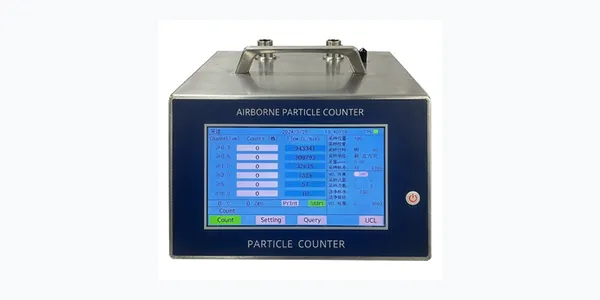

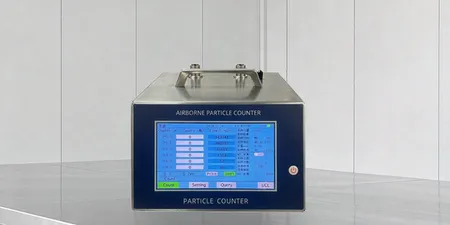

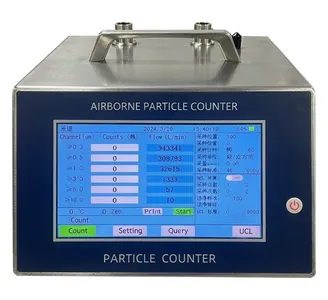

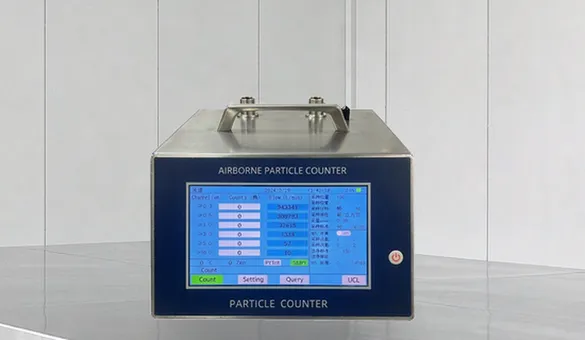

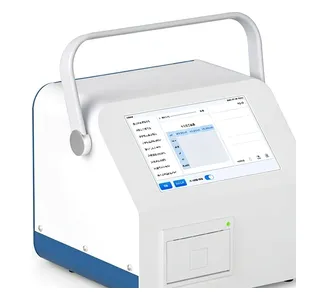

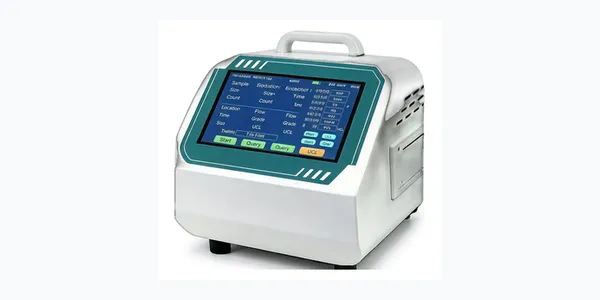

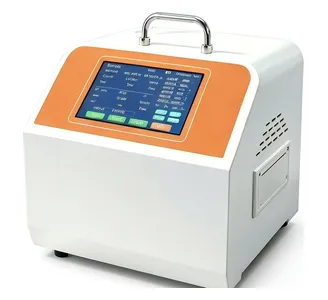

Benchtop Particle Counter

Cleanrooms and associated controlled environments — Part 1: Classification of air cleanliness by particle concentration

■ Constructed on anodized extruded aluminum frame with sealed sandwich panel, HPL, acrylic or tempered-glass infill. ■ Suitable for ISO 5–8 per ISO 14644-1; positive or negative pressure cascade available. ■ Flush double-glazed observation windows, steel cleanroom doors with drop-down bottom seal. ■ Panels: rock-wool / glass-magnesium / paper-honeycomb / aluminum-honeycomb / PU core options. ■ HEPA H14 (EN 1822) as standard; ULPA U15/U16 option. ESD-safe conductive finish for electronics.
