Manual vs Automatic Cleanroom Door: Cost, Hygiene, Throughput

Deciding between manual and automatic cleanroom Doors is not merely a question of moving from basic to premium doors, but it is a risk-based operational choice.

Short Answer

• A manual door may be installed in places with little traffic as confirmed through a risk assessment and may use door closer and electrical interlocks.
• On the other hand, an automatic door is suitable for situations which require the use of trolleys, hands-free entrance and automatic access regular entries.
• The need for interlocks and their appropriate form should be judged according to the standard regulations, the cleanroom zone and the type of contamination control being dealt with, rather than the door operation.

rk49JoPJGf0

Door Selection as a cleanroom design Factor

Cleanroom access doors serve a bigger purpose than just blocking one area off from another. Characteristic features of cleanroom doors impact differential pressure, the flow of air, as well as contamination avoidance from increased contact points.

Picking between a manual door and an automatic cleanroom door is a matter of balancing the initial investment and ongoing operational costs with contact risks and repair difficulties.

Before comparing drive types, keep one principle in mind: compare like-for-like configurations.

• Remember that when comparing the automatic and manual cleanroom door options you should compare like-for-like systems.
• To ACHieve an accurate comparison of automatic and manual solutions, avoid changes in doors size, materials and seals, and conditions of service.

• Swings and sliding doors differ when it comes to disturbance in functioning of the door, meaning that you cannot blame automation for all the issues in doors functioning.

Core Metric Comparison

There are three primary dimensions that delineate between the manual and automatic cleanroom door. These include capital and lifecycle cost, hygiene risk profile, and passage throughput.

Cost and performance vary not just for type of door but also size, how seals are constructed, interlock requirements, safety sensors, site work and service conditions in the relevant area. This table provides only rough estimates and not a quotation or performance guarantee of any kind.

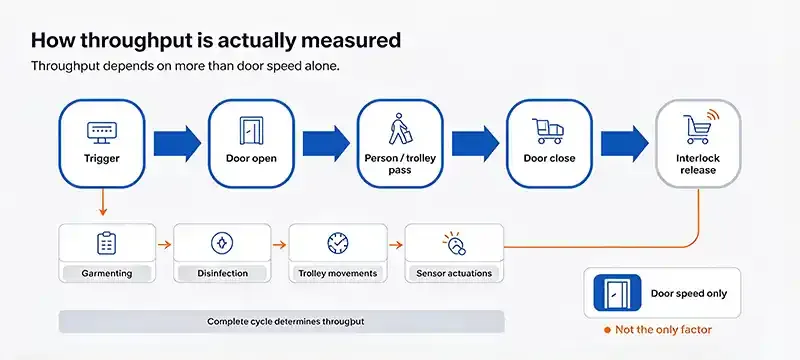

How throughput is actually measured

Throughput depends on more than door speed alone. A full passage cycle includes:

Trigger → Door open → Person / trolley pass → Door close → Interlock release / next passage permission

Airlock throughput gets bottlenecked by garmenting procedures, disinfection steps, trolley movements and several actuations by the sensors, and not just with the operation of the door.

Total Cost of Ownership: Beyond Initial Price

The purchase cost is merely a small part of total cost of ownership. TCO analysis includes the following aspects:

Basic TCO formula for evaluation period:

TCO over evaluation period = Capital expenditure + Total O&M cost over period + Downtime & disruption cost

Simple payback period, if net annual benefit is positive:

Simple payback = Additional investment of automatic option / Annual net benefit

Note: The time savings attributed to the use of the technology should not be thought of in terms of monetary savings in labour cost. Do not express the same gains in different categories.

Cleanroom Door Automation: Logic & Impact

EuRoPy7JivE

Cleanroom door automation ensures consistent sequences for door opening and closing. However, automation cannot by itself guarantee GMP compliance or pressure control.

Core control functions typically include:

• Activation: Typical activation methods include radar detection, and infrared curtain, foot pedal and card reader access.
• Interlock sequence: According to the interlocking principle, in airlock applications the second door is only allowed to open after the first door is completely closed.
• Safety functions: These include hysteresis, pinch detection, reverse motion obstruction, and emergency release.

Pressure changes during door actuation occur because of various factors such as size of the door, the movement speed and acceleration, the value of differential pressure established, the airlock volume capacity, and the HVAC operation. Moreover, it should be noted that the motor size alone does not indicate the size of the pressure wave.HVAC system response. Motor size alone does not determine the magnitude of the pressure spike.

Key parameters to verify during commissioning:

• Static pressure with the door sealed
• Minimum differential pressure during the opening process
• Period of time when the pressure is below the project parameters
• Recovery time after door closes
• Time it takes for the pressure value to come back to normal after the door being closed

Failures on this parameter happen due to specifying the speed of doors without analysis of air displacement and pressure drop in relation to HVAC operations.

Decision Framework: Scenario Based Selection

Simply cleanliness class will not allow to determine type of door. The evaluation should take into account risks associated with the process, ways of personnel and material movement, pressure policy followed, ways of emergency exiting and maintenance conditions.

Application Scene Matching

As the zones of cleanrooms will have very different hygiene requirements, traffic and material handling characteristics door fittings should correspond to that situation rather than to introduce general requirements for all cases.ACH scenario rather than applying uniform specifications site-wide.

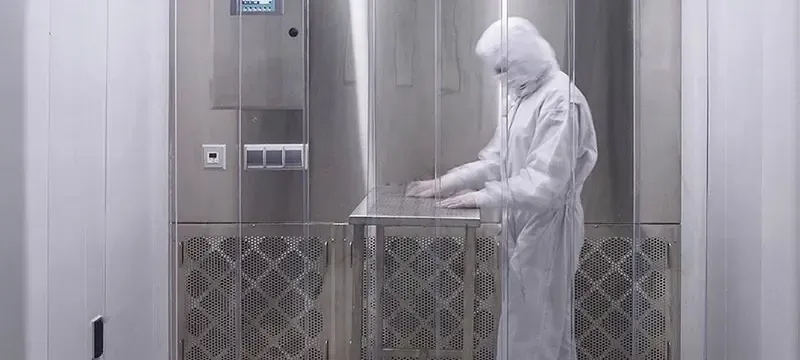

Pharmaceutical Weighing & dispensing rooms

Popular locations have a low volume of personnel flow, but high requirements for hygiene. The manual cleanroom door, used in conjunction with appropriate disinfection procedures, will generally suffice.

In high-grade projects, the use of lightweight automatic sliding doors may be specified to minimize touching surfaces even further. The most important thing is that the panels should be easy to clean and feature strict sealing along the perimeter.

Large Logistics Transfer Openings & Cargo Airlocks

When there is heavy usage of forks and trolleys, high-speed options of automatic doors are generally the mode of choice.

When selecting the opening speed of the door account has to be made of the door type, type of vehicle and risk assessment. A high speed would result in better hygiene levels, but with higher risks of mechanical faults.

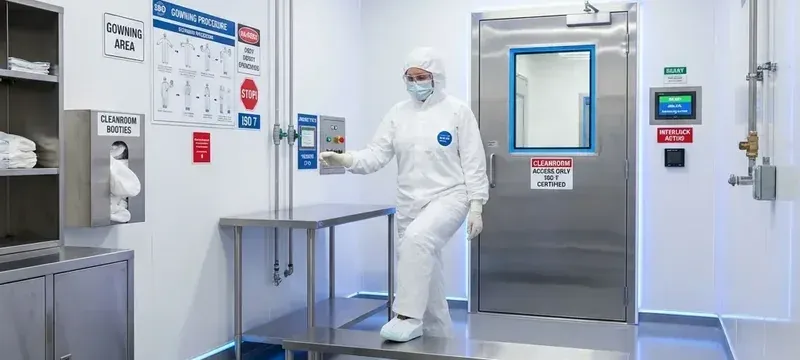

Laboratory Buffer Zones & Personnel Airlocks

Personnel garment pass-through points should be considered. They are fundamental for contamination control.

Interlocking is generally needed for classified air locks, while an automatic system will make the operation easier for the staff carrying their goods.

Hygiene Performance & Cleanability

While touchless operation minimizes contact transmission risk, the level of cleanliness achieved is determined by more than the type of drive used.

Procurement checkpoints for cleanability:

• Factors such as the presence of difficult-to-clean bottom tracks or grooves.
• The accessibility of the drive housing for cleaning and inspection purposes.
• Whether the door panels and seals are suitable for site sanitizers.
• The levels of particles generated during normal operation as well as wear levels.
• The need to re-clean the site and recover the environment after maintenance work has been carried out.

Failure, Emergency & Maintenance Considerations

Automatic door systems add operational complexity. Verify the following points during specification and acceptance:

Retrofit Evaluation Example

Automatic door installations increase complexity. Make sure to review these guidelines during the spec and acceptance phases:

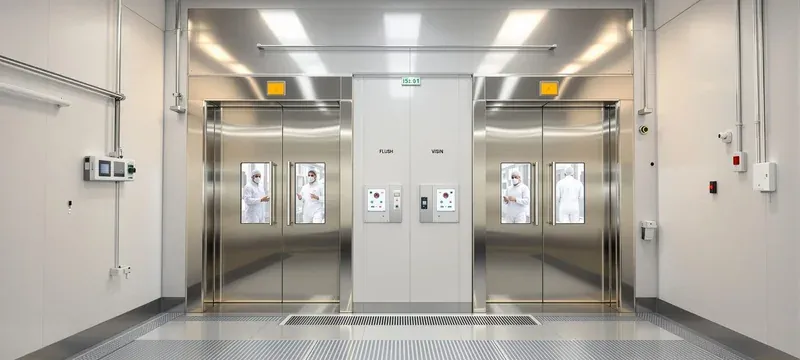

This example is just for illustration, not to be taken as a record of a project already undertaken. This considers a typical iso class 7 production area upgrade where original manual doors are coming out, being replaced with interlocking automatic sliding doors in personnel access points and high-speed rolling doors at material transfer points.

Increased throughput, consistent interlock sequence and shorter opening times is what you expect to achieve.

Real pressure stability, particle size and throughput changes depend on baseline conditions, accompanying HVAC modifications and operational procedures.

Frequently Asked Questions

Q: Which is better for GMP settings, the manual or automatic cleanroom door?

A: There is no definitive answer to this question. Automatic and manual cleanroom doors can be used in low-traffic areas, such as clean weighing rooms, as long as they are specified correctly. With regards to airlocks, the interlock must be validated, regardless of whether the door is automatic or manual.

Q: Do automated doors create pressure differentials?

A: Opening any door causes a temporary disruption in pressure, regardless of the type of opening mechanism. The amount of pressure changes depends on the size of the door, the speed of opening, the amount of air moved, and the efficiency of the HVAC system. While proper sequence and airlock system design will mitigate some of the problems, it will never eliminate them completely.

Q: What are the main issues with maintaining automatic doors?

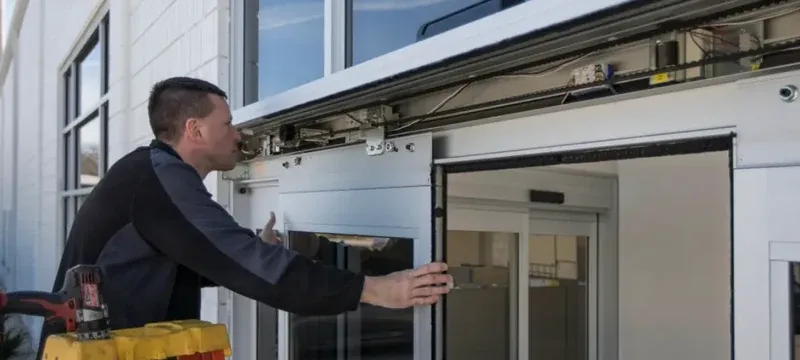

A: The major issues associated with keeping automatic doors operational include regular calibration of the door opening mechanism and sensors, and replacement of the working elements, such as seals and rollers. It is also essential to provide access to maintenance, which is often overlooked.

Q: When should manual doors be chosen over automatic doors?

A: Manual doors should be selected when funding is limited and the expected usage rates are low or if there are secondary auxiliary zones in the cleanroom environment where interlocks are not needed. Manual doors can sometimes also be fitted with closers and switches.

Q: How to determine the financial benefits of automation of cleanroom doors?

A: The TCO model should be used to identify the operating costs and capital expenses of this technology while also calculating the savings that arises from shortened manual operation time, better air exchange and more efficient logistics.
