Stainless Steel vs HPL Cleanroom Door: Which Surface?

If you are comparing hpl or stainless cleanroom door options, you have probably seen one vendor call stainless "the only Grade A choice" and another say HPL is "just as good." Both overstate the case. The right answer depends on your disinfectant regime, how often the door cycles, what cart and trolley traffic does to the leaf, and what evidence your QA team can defend in an audit.

This Cleanroom door material comparison looks at the two materials as they actually appear on a finished cleanroom door — not as raw material data sheets. It separates what the standard requires, what lab tests show, what our engineering judgment supports, and what still needs project-specific evidence.

In Brief: Why the Material Question Is Harder Than It Looks

QA walks the room at acceptance and runs a gloved finger along the door frame corner. They are looking for a surface that survives your SOP, a gap and seal arrangement that does not shed particles when the door opens, and a leaf with no hidden cavities where material can collect.

What they are not checking is a material name. GMP and ISO standards describe surface performance and cleanliness, not "this material is required." The selection that holds up in an audit is backed by test data for the actual door assembly — not by the highest price tag.

When you evaluate stainless steel vs HPL cleanroom door options, three things drive the comparison:

• Disinfectant compatibility — face, edge band, and gasket must survive your actual routine
• Surface + seam condition — Ra is one number; the wipe must also reACH welds, trim, handle base, seal groove
• Lifecycle cost — seals, hinges, and closers fail first; the leaf rarely does

Public market reports put stainless steel at 38%–50% of global cleanroom door revenue and HPL/compact panel at 14%–20% of the pure cleanroom-door category. Different research firms disagree by more than 11 percentage points, so we cite a range — not a number. In pharma specifically, stainless share rises above 50% because high-care zones commonly use stainless.

The way this usually goes wrong on site is treating the material decision as a leaf-surface decision. The leaf is one component. The seal, closer, drive, and installation determine whether the door holds the differential pressure your HVAC was designed for.

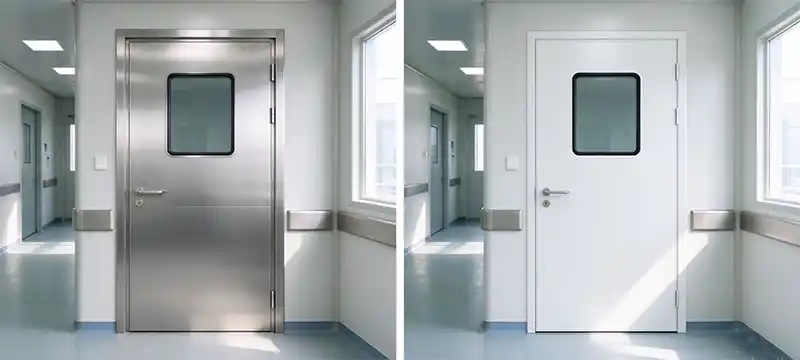

Comparative Material Analysis: Stainless Steel vs HPL Cleanroom Door

vtWaTqk5mAU

What "HPL Door" and "Stainless Door" Actually Mean

Walk into a supplier room and you will see two doors both labeled "HPL." One may be a 12 mm solid compact laminate panel with a sealed edge; the other may be a 0.8 mm HPL skin over particleboard with a PVC edge band. They behave very differently under wet cleaning. Same word, different door.

Similarly, "316L door" often means only the face sheet is 316L. The frame, fasteners, hinges, and closer may be 304 or mild steel. Ask for the bill of materials, not the product name.

In our standard construction: compact HPL leaf is 6–13 mm homogeneous laminate; the actual door leaf is a 40–50 mm composite (HPL face + aluminum honeycomb or mineral core + sealed edge). A 316L leaf uses 1.2–1.5 mm double skin over 50 mm rock wool or PU core. Standard sizes: 900 × 2100 mm, 1200 × 2100 mm, 1500 × 2100 mm. All hardware is 304 stainless.

Chemical Resistance: Conditions Matter More Than the Material Name

Pharma disinfectants are not one product. Alcohol, quaternary ammonium, oxidizing agents, and vapor-phase sterilization each attack the material differently. A material that passes a 24-hour wipe test may still degrade after hundreds of VHP cycles.

Our internal material reference records: cleanroom-grade HPL shows no degradation after 24 h in 35% H₂O₂, slight surface effect in 0.2% peracetic acid, and slight discoloration after 12 h in 5.25% NaOCl. The most common HPL failure mode is bottom-edge water delamination — usually from floor wash water soaking in, and almost always coinciding with a failed drop-down seal. On stainless, 316L's molybdenum content of 2.0%–3.0% per ASTM A240 [5] is the margin that distinguishes it from 304 in pitting-prone oxidant exposure.

When you ask a supplier for chemical resistance, do not accept "compatible with pharma disinfectants." Ask for formulation, concentration, contact time, temperature, cycle count, and acceptance criterion. A 24-hour spot test is not a VHP cycle validation.

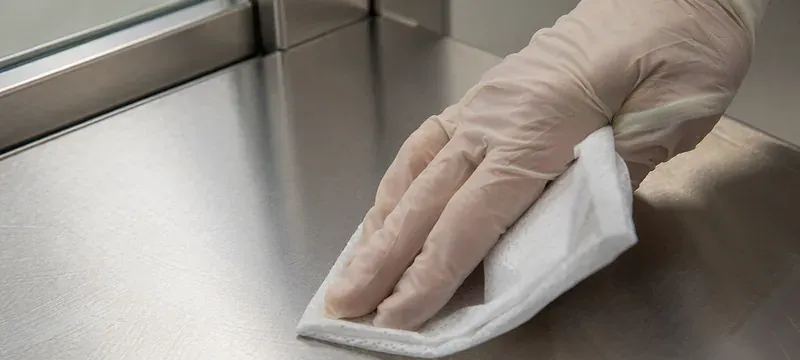

Surface Finish: Ra Is Necessary, Not Sufficient

Surface roughness (Ra) matters, but a cleanable surface is also about seams, welds, vision-panel trim, handle base, and seal groove. A low Ra on the face sheet does not compensate for a gap behind the hinge nobody can reach.

Do not read the "typical use context" column as a rule that the material is required for that grade. It describes where the construction is commonly chosen. Whether it meets your URS depends on surface integrity at the seams and welds — not just the face.

In our project experience, the most common cleanability issues are not on the face sheet — they are at the hinge corner, bottom edge, and seal groove. The Australian hollow-core case in our reference library showed internal cavities behind the face can collect bacteria even when the face material is stainless. Ask to see close-up photos of the weld, edge band, vision-panel trim, and handle base on the actual door you are evaluating.

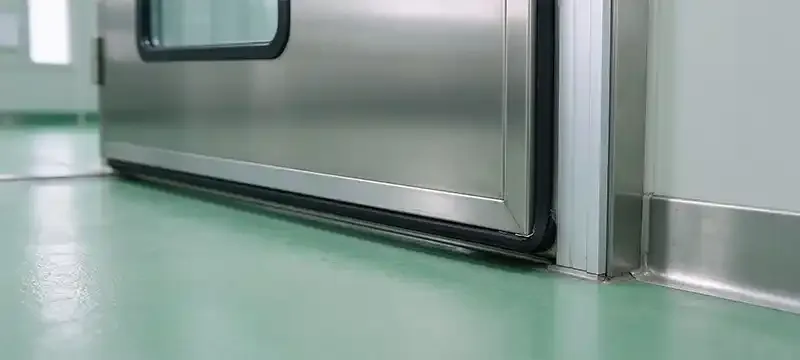

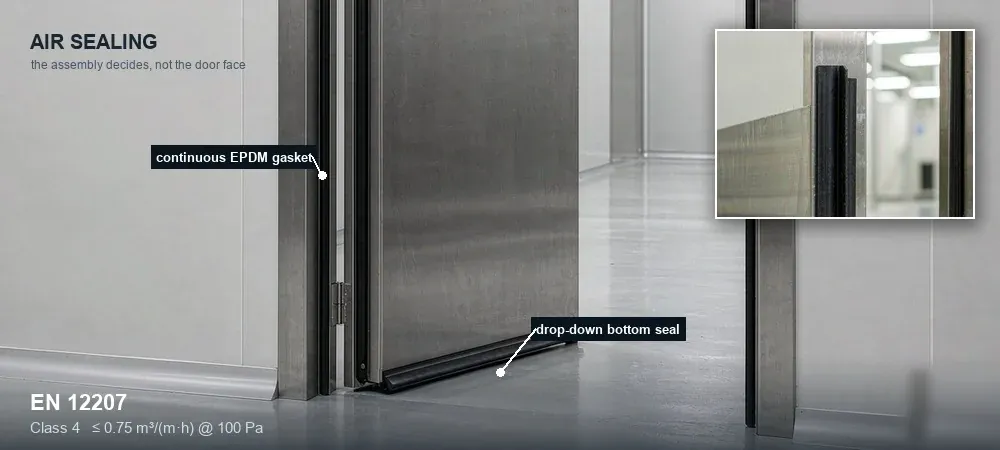

Airtightness: The Whole Assembly Matters

A door's airtightness is determined by frame geometry, gasket material and compression, locking mechanism, and installation — not by the face material. A stainless door and an HPL door on the same frame and gasket can perform differently depending on how the leaf is rigidized.

 Per EN 12207 at 100 Pa reference [7]: Class 3 allows ≤ 2.25 m³/(m·h) linear leakage; Class 4 allows ≤ 0.75 m³/(m·h) for press-action or inflatable-seal assemblies. In a B-grade vaccine suite reference project, 6 interlocked Hermetic doors measured 0.3 m³/(m²·h) leakage at close against that project's acceptance target of ≤ 0.5 m³/(m²·h) — note this is the project's URS value, not a universal GMP limit.

When a supplier quotes an EN 12207 class, ask: reference pressure, test specimen size, and door dimensions. A Class 4 rating on a 900 × 2100 mm door does not transfer directly to a 1500 × 2100 mm double-leaf door.

Factory test data confirms the design; field acceptance confirms the installation. Both are needed. A door that passes the bench test but is installed on an out-of-level floor may not seal on site.

Mechanical Impact: Compare the Whole Door, Not the Material

Material tensile strength and whole-door impact resistance are different questions. 316L sheet is much stronger than HPL, but a 1.2 mm skin over a lightweight core can still dent permanently under a cart bump. That dent is not the same as "oil-canning" (panel waviness from thin skin over an unsupported frame) — two different failure modes, two different fixes.

What actually matters in a cart corridor: does the impact leave a permanent dent that becomes a cleanability trap? Does the leaf still close and seal after the bump? Do the hinges and closer stay aligned?

 Material-level data: HPL passes EN 438-2 §21 falling-ball test at 1800–2000 mm height with ≤10 mm dent, flexural strength 90–114 MPa, tensile 66–70 MPa [6]. 316L tensile strength 485–560 MPa, Charpy V-notch impact 88–134 J [5]. These are material-level numbers — they cannot be converted into a whole-door impact ratio. For high-traffic corridors, our free-swing impact door uses 304 stainless leaf 1.2 mm, frame 1.0 mm, XPS core, impact hinges rated over 500,000 cycles.

Ask suppliers for whole-door impact test reports (per your trolley load and impact point) — not material tensile data. The whole-door result predicts field behavior.

Pros, Cons, and Open Questions

We avoid green-check / red-cross language that implies one material is universally better. Each item is marked as confirmed advantage, conditional trade-off, or open question.

What Usually Fails First

Across door types in controlled environments, the leaf face is rarely the first component to fail. The typical sequence:

1. Perimeter gaskets — compression set, chemical attack
2. Hinges — clearance develops, leaf sags, uneven seal pressure
3. Door closers — hydraulic seals age, leak, slow down
4. Locks and handles — screws loosen, latch sticks

Based on our maintenance reference data: perimeter gaskets replaced every 2–4 years; automatic bottom drop-down seal every 12–18 months on high-frequency doors; hinges and hydraulic closers every 3–5 years. The leaf panel itself rarely fails before 15 years if seals and hardware are maintained on schedule. Build your maintenance budget around seals and hardware — not around replacing the leaf.

When to Choose Stainless Steel vs HPL (By Use Case)

Rather than saying "Grade X must use material Y," we describe the operating conditions that drive the decision. Your cleanroom grade is context; the actual disinfectant regime, traffic pattern, and maintenance routine are the decision drivers.

Use Case 1: Routine wet disinfection with VHP cycles

Where the room undergoes isolated-room VHP decontamination, stainless steel is the more common choice. Not because the standard mandates it — but because the face sheet, gaskets, and adhesives all need to survive repeated VHP cycles, and stainless assemblies have more field history in that regime. If you are evaluating HPL in a VHP zone, require cycle-compatibility test data for the exact assembly first.

Use Case 2: Daily oxidizing wipe, no VHP

Where the routine is daily wipe with dilute H₂O₂ or peracetic acid but no vapor-phase cycle, 304 stainless is often adequate. HPL compact panel can also be considered — provided the specific HPL grade and edge construction has been tested against your formulation. The deciding factor is the edge banding, not the face.

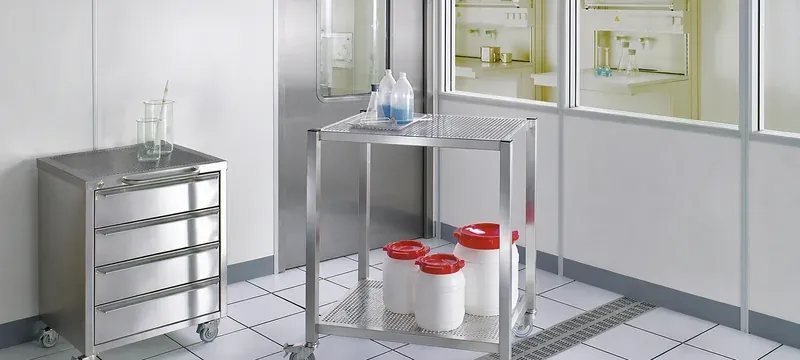

Use Case 3: Heavy cart / forklift traffic

Material corridors with trolley traffic need whole-door impact resistance, not material strength. Look for a reinforced face, durable core, and impact hinges rated for your cycle count. The material choice here is secondary to the impact protection and hinge selection.

Use Case 4: Low-frequency support zones

Where the door sees infrequent use and no direct product exposure, a painted or HPL-faced door is often the practical choice. The budget goes to the seal and closer, not to the face material. Over-specifying 316L here wastes money without reducing risk.

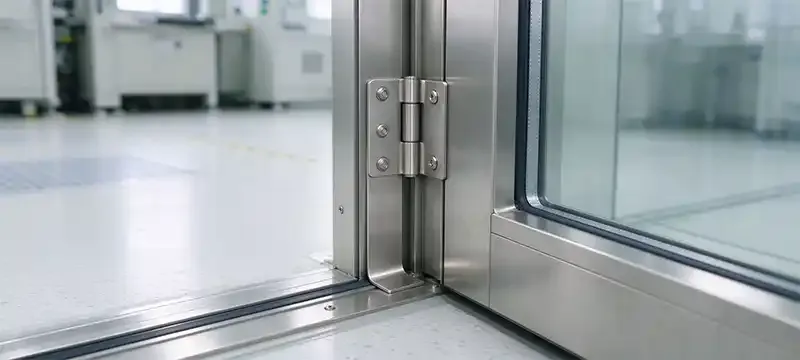

Use Case 5: ESD-sensitive environments

If the zone has ESD requirements, both materials can be modified (stainless with conductive gaskets, HPL with dissipative surface) but the conductive path must be part of the whole-door design. Do not assume the face material alone provides ESD protection.

Reference Project Notes (Publicly Disclosed Data)

The following are drawn from publicly disclosed project data, not from Deiiang's own deliveries unless noted. They are reference points, not a claim that Deiiang delivered them.

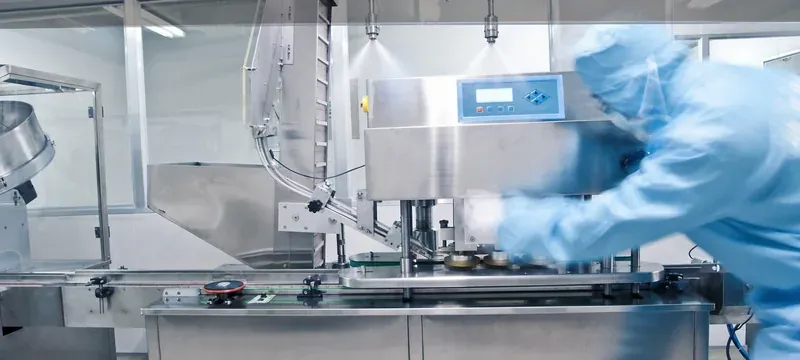

Project A — Aseptic filling suite (publicly disclosed, vendor-reported). 2 × Grade A + 4 × Grade B doors. Stainless leaf, inflatable seal, dual pressure sensors, +15 Pa / +10 Pa cascade. Reported price anchor: ~55,000 RMB per leaf including controller and interlock commissioning. Reported as passing GMP first pass.

Project B — Vaccine production suite (publicly disclosed). 6 interlocked hermetic doors, 304 stainless, magnetic card interlock, pressure sensor. Reported measured leakage at close: 0.3 m³/(m²·h) against the project's acceptance target of ≤ 0.5 m³/(m²·h) — note this is the project's URS target, not a universal GMP limit. The pre-retrofit note: the original belt-driven sliding door was reported to shed micro-particles that pushed 0.5 μm counts over spec; after switching to brushless direct drive, counts returned to spec. This improvement is consistent with reduced particle shedding, but the retrofit was not a controlled experiment isolating the belt as the sole cause.

Project C — Solid-dose facility (cross-referenced from public industry practice). C-grade weighing, granulation, and coating areas typically use HPL compact or 304 doors with vision panels; D-grade corridors and change rooms use painted or HPL-faced swing doors. C/D-grade doors commonly make up the majority of door count but a minority of total door cost.

The Australia hollow-core lesson. A production facility found dust buildup on the door ventilation grille leading to a buffer corridor. Sampling inside the hollow door core confirmed bacterial growth. The root cause was a hollow-skin construction with internal cavities — regardless of face material. The door was replaced with a solid, joint-free GRP molded leaf. Material choice is not enough: internal cavities and non-cleanable surfaces are a separate design risk.

Scope note: these results apply to the specific configurations, disinfectant regimes, and installation conditions described. They should not be generalized to other HPL brands, other VHP formulations, or other door drives. Your own selection should be validated against your URS and site test data.

MYTH: "Stainless Steel Is Always the Safer Choice"

Myth: "Stainless never rusts, so it's the right answer everywhere."

Stainless 304 under repeated hypochlorite contact can develop tea-staining and pitting over years. That is why 316L exists — it adds molybdenum for more margin, not because 304 fails catastrophically. In a corridor that only sees IPA and QAC, 304 is a defensible choice. The selection should match your actual chemical exposure, not a default assumption that "more stainless = safer."

Myth: "HPL isn't clean enough for pharma."

HPL compact panel is a homogeneous, low-porosity surface that passes EN 438-2 stain tests under lab conditions. In zones where VHP is not used and the edge construction is properly sealed, it is a widely used and defensible choice. The failure mode is not the face — it is the edge banding absorbing water from floor cleaning. If the edge is sealed and the bottom has a working drop-down seal, HPL can perform well for its intended life.

What the standard actually says

EU GMP Annex 1 (2022 revision) requires surfaces that are smooth, cleanable, and compatible with the disinfectants used in the room [4]. It does not name a material. iso 14644-1 classifies air cleanliness [11], and ISO 14644-14 addresses equipment suitability assessment [10] — neither prescribes a door leaf material. The standard sets a performance bar; the material is one way to meet it.

Purchase Price vs. Lifecycle Cost

A door quote is not apples-to-apples when one supplier prices a 316L inflatable-seal automatic door and another prices an HPL manual swing door. To compare materials fairly, hold the door type, opening size, vision panel, automation, and seal configuration constant — then compare the cost of the leaf face, maintenance schedule, and downtime risk.

Lifecycle Cost = Initial Purchase + Installation + Maintenance & Parts + Downtime Cost − Residual Value

Public project data gives planning anchors (not Deiiang quotes, subject to your actual configuration): A-grade 316L inflatable-seal door ~55,000 RMB/leaf; B-grade 304 interlocked hermetic door ~30,000–45,000 RMB/leaf; C-grade HPL compact panel door ~12,000–20,000 RMB/leaf; D-grade painted steel swing door ~6,000–11,000 RMB/leaf. On a relative basis, a stainless leaf face runs ~30%–40% above powder-coated steel; HPL lands at 70%–85% of the stainless leaf price.

When you collect quotes, require each supplier to specify: installation included, commissioning included, tax included, warranty period, local spare parts stock. A low quote that saves on edge construction or test reports may cost more in year 3. The larger cost drivers are the seal system, automation, interlock, and local service response time — not the leaf face price.

Decision Checklist: Evidence Status, Not a Score

Rather than a numeric score that implies a regulatory verdict, this checklist tracks what evidence you have and what is still open. Life-safety, fire, and disinfectant compatibility are gating requirements — if they are not met, the option is not approved, regardless of other scores.

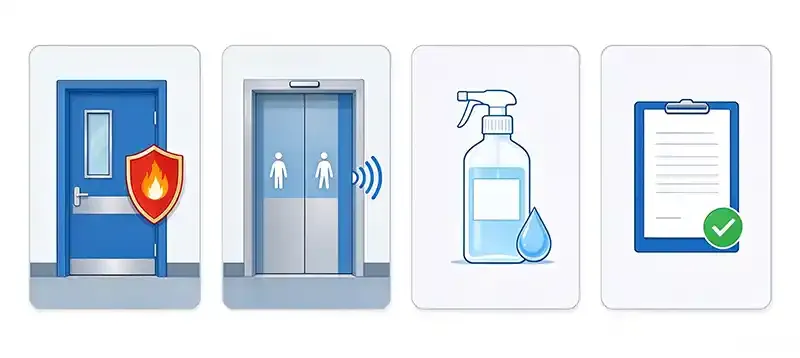

Gating Requirements

• Fire / integrity requirement identified and tested (EN 1634-1 where applicable)
• Powered pedestrian door safety (EN 16005) addressed if automatic [8]
• Disinfectant compatibility data for the specific assembly against your formulation
• Material mill certificate (EN 10204 3.1 where 316L specified) — certifies material batch, not door clean performance

Evidence Status Tracking

• ✅ Confirmed — report provided, method understood, applicable to your config
• ⚠️ Pending — supplier claims it, no report yet; selection not approved
• ❌ N/A — does not apply to this door type or zone
• 🔍 Needs review — evidence exists but test condition doesn't match your use case

If a gating requirement is not met, the option is not approved — do not compensate with a higher score on aesthetic or cost. If evidence is pending, mark the selection as "pending" and wait for the report rather than making a provisional decision.

For reference, our internal engineering evaluation framework weights the non-gating dimensions as follows (total 100, after gating requirements are met): surface-grade fit 25, chemical / disinfectant compatibility 20, airtightness 15, 5–10 year lifecycle cost 15, reliability 10, delivery and local service 8, compliance certification 4, aesthetics 3. Weights shift by scenario: high-care aseptic zones — cost drops to 5, surface-grade fit rises to 30; support zones — cost rises to 30, service to 12. This is our internal engineering framework, not a regulatory scoring system.

FAQ

1. What factors should I consider when deciding between HPL and steel for cleanroom doors?

Begin with your cleaning procedures: types and concentrations of disinfectants you will use, how often will you clean, is there a VHP cycle present, etc. Next, assess the traffic flow and how often you clean the doors. In determining the material used, one must base it on these factors and not on the assumption that one material is “better”. Lack of relevant compatibility data from the supplier, regarding the specific disinfectant applied to the specific door makes the decision premature.

2. Is there a specific door material to comply with the iso classification?

No. ISO 14644-1 categorizes air quality by means of counting particles but does not dictate what doors should be made of. Specific design is what determines whether a door is appropriate for a particular grade. The name of the material alone will not suffice.

3. Can I use an HPL door in a room that uses vapors of hydrogen peroxide?

No. HPL face, adhesive, and seal materials will behave differently in the presence of VHP. You need to have test results for the entire door assembly (face + adhesive + gaskets + edges), under your specific conditions of VHP concentration.

4. How should I decide between 304 and 316L steel?

Look at actual chemicals exposed to the door. If only IPA and QAC are present in the room, with occasional diluted oxidant cleaning rinses, then all would normally be fine with 304. However, if hypochlorites, peracetic acid, or VHP cycles are used and residues are left behind — 316L offers more benefits due to its additional content of molybdenum.

5. Why do the prices for the same material differ among different suppliers?

The term “material” usually does not imply the same doors being made. Many differences appear including the quality of the core material, thickness of the face sheet, edge design, quality of the gaskets or hinges deployed, level of automation used, and even the presence of effort-requiring tests.

6. In case the face of the door is in need of repair, can we perform it on-site and how can we verify its efficiency?

When it comes to stainless steel, a deep dent can be removed by an experienced manufacturer; however, aesthetics and cleanability have to be re-checked after that. HPL will not be able to cope with this task because scratches are nothing but a cosmetic issue, whereas peeling of some edges means that replacing of panels is inevitable.

Still deciding whether hpl or stainless cleanroom door is right for your room? Talk to our engineering team — tell us your disinfectant regime, daily cycle count, and URS, and we will map you to a configuration and a test report list, not a catalog.

References

1. Dataintelo, Cleanroom Doors Market Report — material revenue split (2025). Cited as a range; different research firms disagree by >11 percentage points.
2. Market Intelo, Cleanroom Door Market Research Report — material segment and door-type split (2025).
3. FDA 21 CFR 211.42(c), Design and construction features. eCFR
4. EU GMP Annex 1 (2022 revision, effective 25 August 2023), Manufacture of sterile medicinal products — surface requirements. EU GMP Guides
5. ASTM A240 / A240M, Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate. ASTM
6. EN 438-2:2016, High-pressure decorative laminates (HPL) — Determination of properties. Surface stain and scratch tests apply to the laminate sheet, not to a complete door assembly. EN Standard
7. EN 12207:2016, Windows and doors — Air permeability — Classification. Lab classification at a defined reference pressure; not a field acceptance criterion. EN Standard
8. EN 16005:2012, Powered pedestrian doorsets — Safety in use — Test methods and requirements. Applies to automatic door safety; not a universal door-closer cycle rating standard. EN Standard
9. NFPA 80, Standard for Fire Doors and Other Opening Protectives. Applies to fire doors; not directly to cleanroom doors. NFPA
10. ISO 14644-14, cleanrooms and associated controlled environments — Assessment of suitability of use of equipment. Applies to equipment assessment; not a universal door certification. ISO
11. iso 14644-1:2015, Cleanrooms and associated controlled environments — Classification of air cleanliness by particle concentration. ISO
12. EN 10204, Metallic products — Types of inspection documents. A 3.1 certificate certifies the material batch; it does not certify whole-door clean performance.
